CPF-PE2-F series vertical double-stage continuous switching Melt filter

With its novel design, superb technology, and rigorous quality inspection, the product is unique in the manufacture of filtration equipment at home and abroad, and is widely used in petrochemical, fine chemical, chemical fiber, metallurgy, papermaking and special media filtration industries.

Category:

Melt filter

Telephone:

18815025787  15961606506(Mr. Huang)

Product Inquiry
  • Product Description

  • Product Features: Reasonable internal design, shorter fluid residence time and no dead corners, no switching defects, easier operation, high-precision pipe polishing technology, and other advantages that are irreplaceable by similar products.

    Performance Range

    Flow Rate

    100-1500kg/h

    Filter Area

    1.26㎡- 19㎡

    Operating Conditions

    System Pressure

    MAX25MPa

    Allowable Pressure Difference

    Max6Mpa

    Jacket Pressure

    ≤0.6 Mpa

    Operating Temperature

    ≤320°C

    Application Range

    Fine filtration for recycled materials (PET, PP, PE, etc.) spinning





    Heating Method

    Heating methods include conductive oil electric heating, conductive oil circulation heating, static diphenyl heating, and diphenyl circulation heating.

    Technical Parameters

    Model

    Pipe Diameter

    Filter Area

    Rated Flow Rate

    Main Structural Dimensions

    PET
    PP/PE

    H

    H1

    H2

    A

    CPF-PE2-1.26/1.05F

    30

    1.26 1.05

    100-140

    140-180

    1130



    User-defined



    User-defined

    2380

    CPF- PE2 1. 8/1. 26F

    30

    1.8/1.26

    130-160

    160-200

    1130

    2430

    CPF- PE2- -3. 5/2. 5F

    40

    3.5/2.5

    200-250

    250-300

    1180

    2480

    CPF-PE2- 5. 5/3. 5F

    40

    5.5/3.5

    260-350

    320-400

    1230

    2880

    CPF- PE2- 7. 5/4. 5F

    50

    7.5/4.5

    400-520

    550-650

    1280

    3130

    CPF- PE2- 9. 5/5.5F

    50

    9.5/5.5

    500-600

    650.750

    1280

    3280

    CPF-PE2- -12/7.5F

    65

    12/7.5

    650-750

    800-900

    1280

    3480

    CPF-PE2- - 15/9.5F

    65

    15/9. 5

    800-1000

    950-1100

    1780

    3630

    CPF-PE2- -19/12F

    65

    19/12

    1100-1500

    1350-1450

    1780

    3730

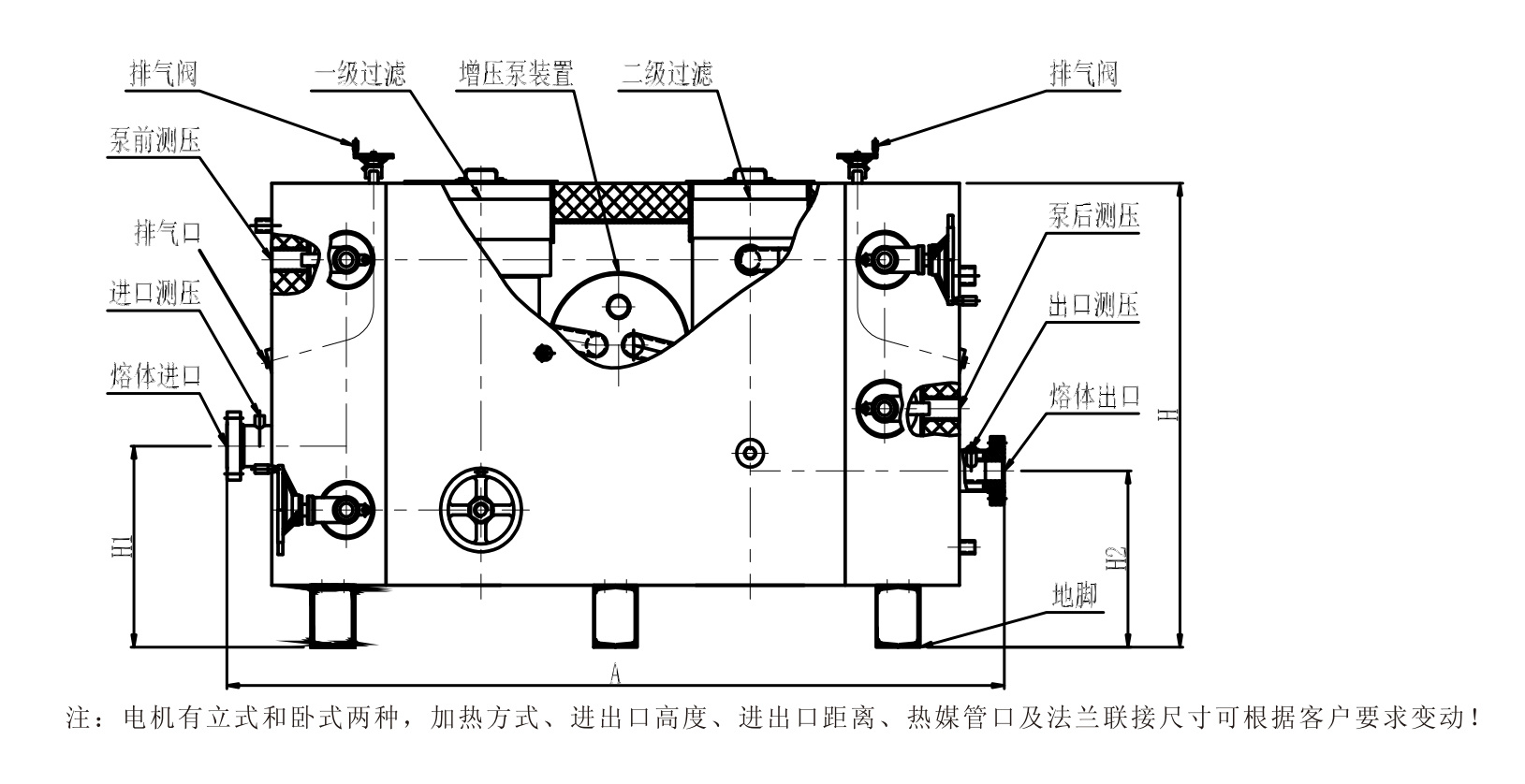

    Structure Diagram

    Structure Diagram
