CPF-HT-F series horizontal continuous switching Melt filter

With its novel design, superb technology, and rigorous quality inspection, the product is unique in the manufacture of filtration equipment at home and abroad, and is widely used in petrochemical, fine chemical, chemical fiber, metallurgy, papermaking and special media filtration industries.

Category:

Melt filter

Telephone:

18815025787  15961606506(Mr. Huang)

Product Inquiry
  • Product Description

  • Product Features: The internal structure design is more in line with actual production processes. The reasonable heating and temperature rising structure replaces the difficult and uneven heating and temperature rising characteristics of similar products, making it more practical.

    Performance Range

    Flow Rate

    20-1200kg/h

    Filter Area

    0.34㎡- 6㎡

    Operating Conditions

    System Pressure

    MAX25MPa

    Allowable Pressure Difference

    Max6Mpa

    Jacket Pressure

    ≤0.25 Mpa

    Operating Temperature

    ≤320°C

    Application Range

    Polyester filament (POY, FDY), nylon (PA6, PA66, PA11) long and short fibers, nylon-polyester composite fibers, polypropylene spun-bonded and melt-blown nonwovens, polypropylene (P) long and short fibers, P spinning, BOPET stretch film, spandex spinning, viscose fiber, plant fiber, etc. Its novel structure, low energy consumption, and wide adaptability.





    Heating Method

    Heat transfer oil circulation heating and diphenyl circulation heating are available.

    Technical Parameters Table

    Model

    Pipe Diameter
    (mm)

    Filter Area
    (m1)

    Rated Flow Rate
    (kg/h)

    Heating Power
    (kw)

    Main Structural Dimensions

    A

    B

    B1

    H

    H1

    H2

    CPF-HT-0.34F

    20

    0. 34

    20/55

    20-50

    1020

    750

    1410

    1050

    User Defined

    436

    CPF-HT-0.6F

    25

    0.6

    50/150

    50-110

    1020

    750

    1410

    1100

    436

    CPF-HT-1.05F

    30

    1.05

    200/300

    150-220

    1080

    870

    1500

    1100

    464

    CPF-HT-1.26F

    30

    1.26

    250/350

    180-250

    1080

    870

    1500

    1150

    470

    CPF-HT-1.8F

    40

    1.8

    300/420

    220-300

    1170

    930

    1580

    1150

    570

    CPF-HT-1.95F

    40

    1.95

    420/550

    250-330

    1170

    930

    1780

    1200

    570

    CPF-HT-2. 5F

    40

    2.5

    480/600

    330-420

    1250

    1030

    1880

    1200

    570

    CPF-HT-2. 7F

    40

    2.7

    550/680

    380-480

    1250

    1030

    1980

    1250

    660

    CPF-HT-3. 5F

    50

    3.5

    700/900

    490-630

    1320

    1080

    2030

    1300

    640

    CPF-HT-4. OF

    50

    4.0

    800/1000

    560-700

    1350

    1260

    2160

    1300

    640

    CPF-HT-6F

    65

    6

    1000/1200

    700-840

    1350

    1260

    2160

    1450

    740

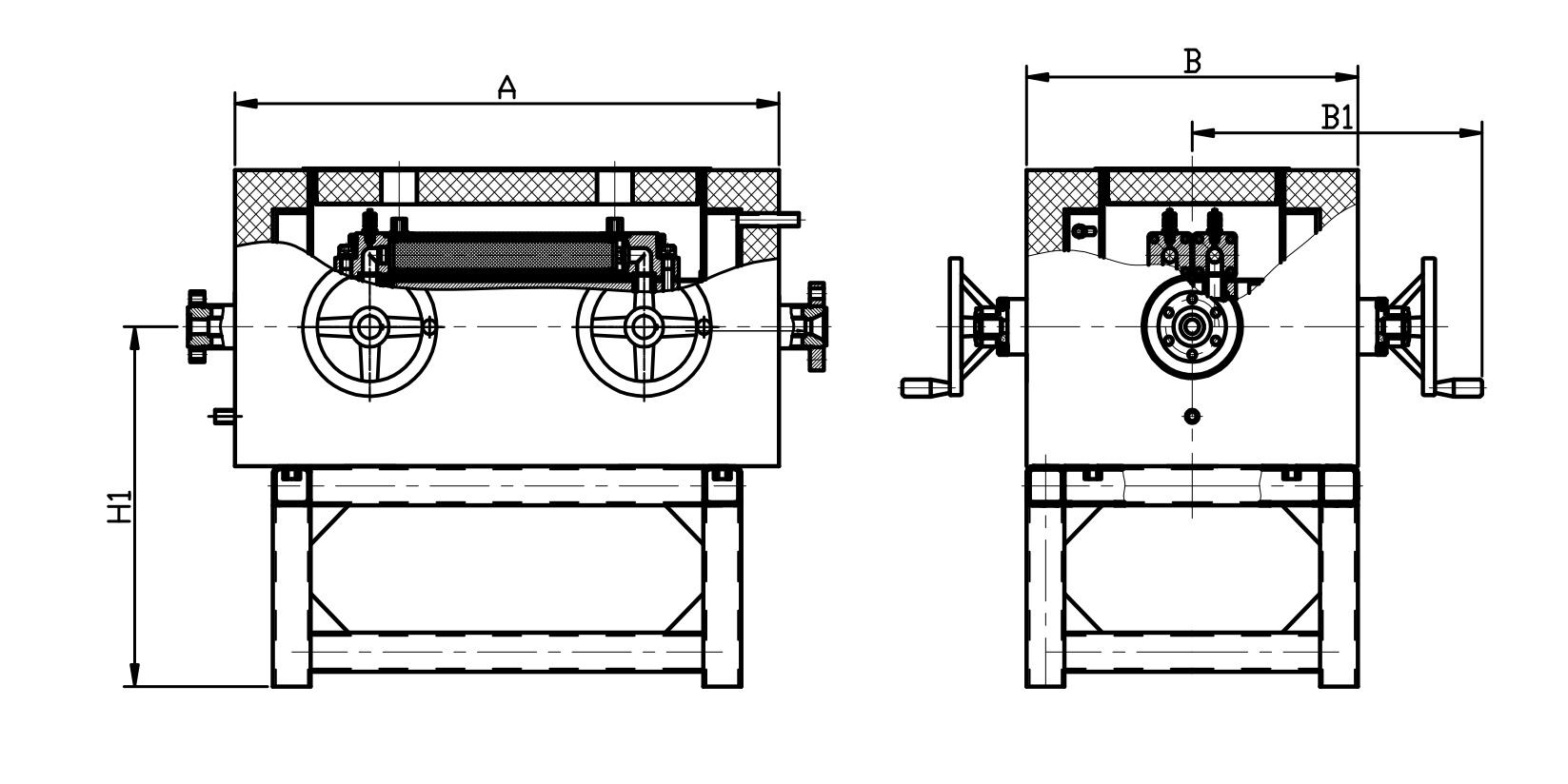

    Structure Diagram Structure Diagram
